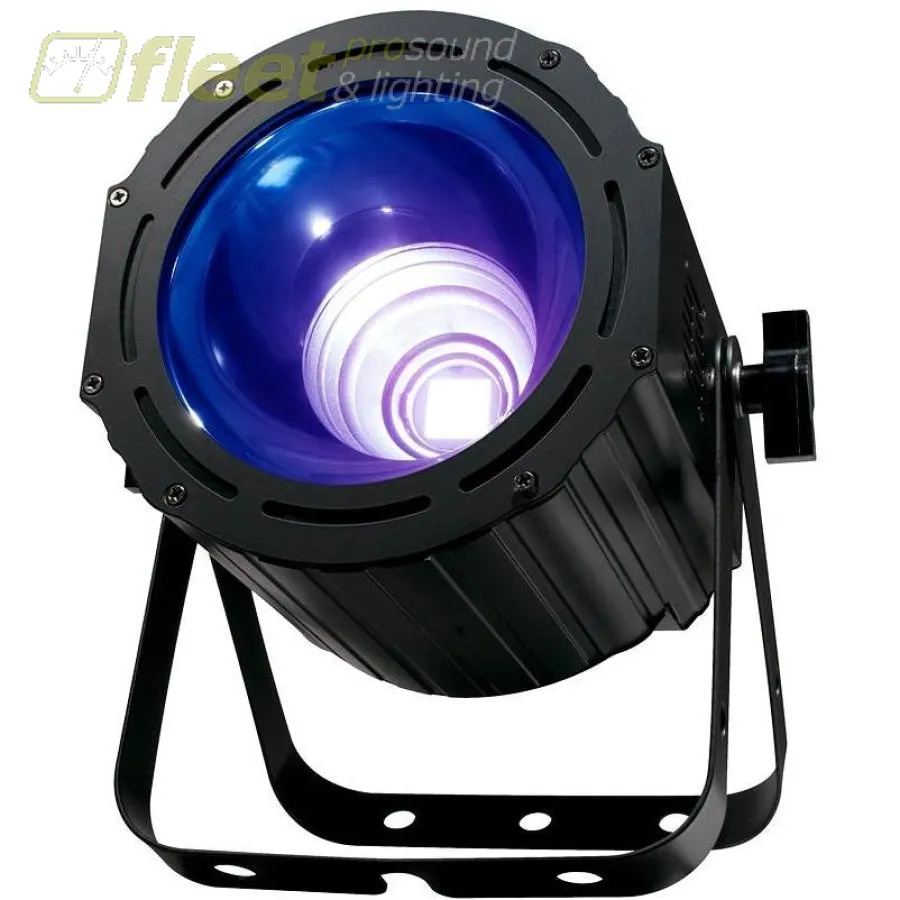

American DJ UV COB Cannon
The ADJ UV COB Cannon produces a large ultraviolet wash from high output, advanced COB (Chip On Board) UV LEDs–COB LED technology allowing for a powerful LED engine to be placed in a small amount of space.

This professional lighting fixture is designed for washing performance stages, theatrical productions and special effects productions. It requires very little maintenance or service due to its sold state electronics.

The UV COB Cannon has 3 operational modes (sound active, manual or DMX), has 3 DMX operational modes, 5 selectable dim curves, a 4-Button DMX Display and is flicker free for film and television. This fixture is DMX linkable via 3-pin DMX, and is power linkable via PowerCon connections. The light source is a 100-Watt COB (Chip On Board) UV LED engine.



Features:

Super high output UV light cannon

Great for performance stages, theatrical productions and special effects productions – requires almost no maintenance – low heat, low power consumption

Advanced COB Technology (Chip On Board) produces powerful, smooth UV color

3 Operation modes: Sound Active, Manual, & DMX

3 DMX Channel modes: 1, 2 or 3 channel

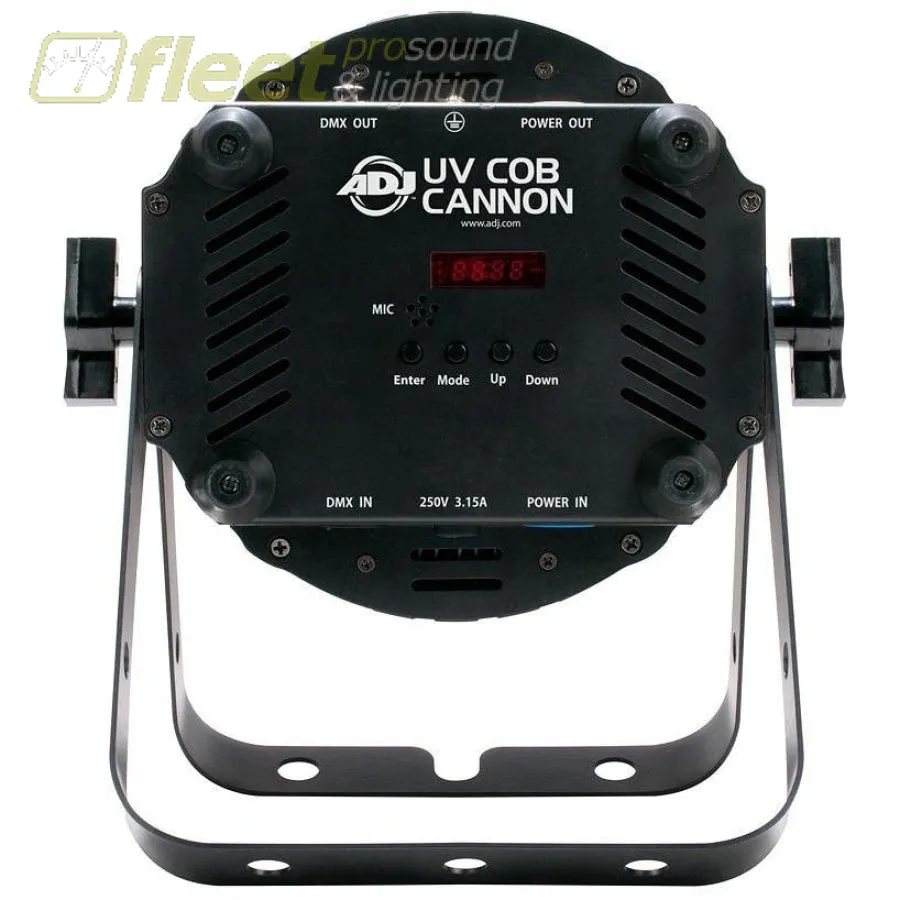

4-button digital DMX display

Flicker Free operation (No flickering on camera)

5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)

LED pulse and strobe effect

Electronic Dimming: 0 - 100%

Beam angle: 33 degrees

Dual yoke allows fixture to be hung or set on the ground

DMX Linkable: 3-pin XLR data connectors

Power Linkable: PowerCon connectors (Up to 3 UV COB Cannon’s @ 120V, 5 UV COB Cannon’s @ 220V fixtures)

Long Life LEDs (Rated at approximately 25,000 hrs.)

Power Draw: 120W total (All LED's @ Full)

Light Source: 100W COB (Chip On Board) UV LED engine

Multi-voltage Operation: Auto switching, AC 100V - 240V/50Hz -60Hz

Dimensions (LxWxH): 12.75” x 11” x 8”/ 320 x 278 x 200mm

Weight: 11 lbs. / 4.98kgs
